DATA SHEET
PANZER WALL SLEEVES

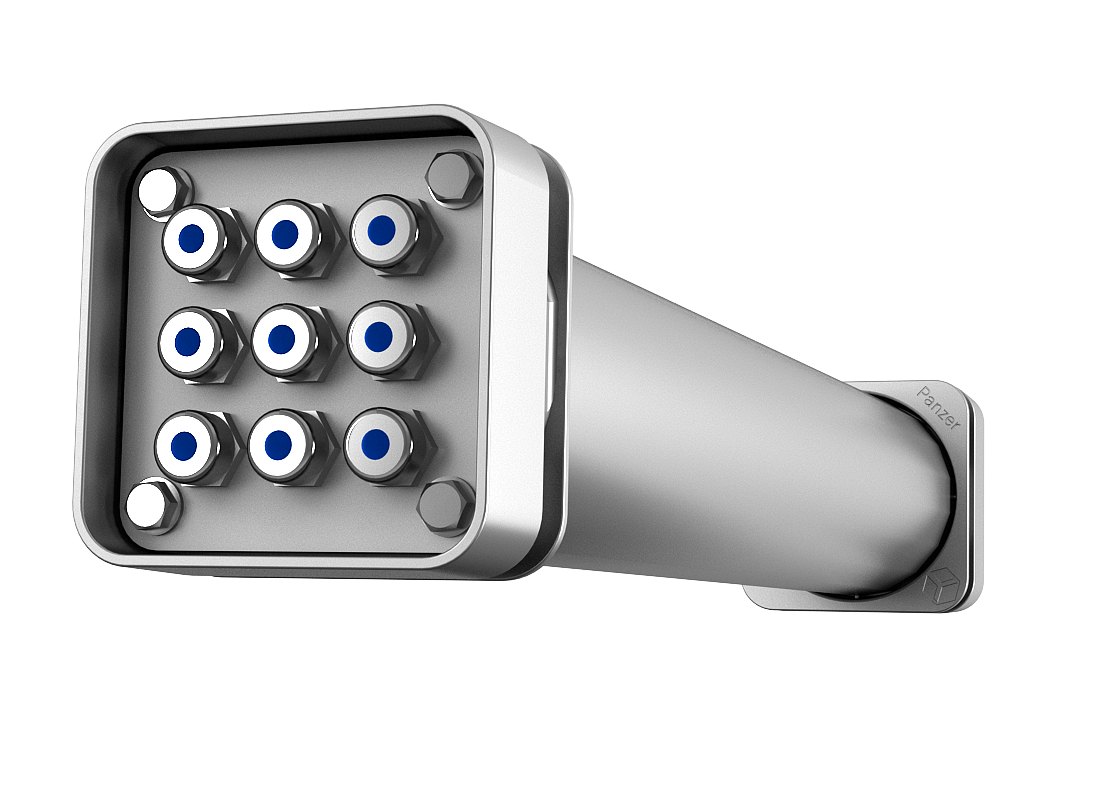

PANZER Wall Sleeve is a specially designed wall passage for electrical cables in various diameters. It is commonly used in shelter construction characterized by blast resistance and gastight solution. The modularity is the most important advantage of wall sleeve.

The wall sleeve is tested with multiple nominal peak reflected overpressure of 41 bar.

The sleeves provides a corrosion-resistant sealing for wide range of cable gland sizes.

They are designed to be suitable for 200-3000 mm wall thickness. The cover plates are designed for various sets of cable glands but can be customized as well.

The diameter of cable can vary from 6 to 62 mm.

Technical changes forbidden.



View the complete technical specifications

APPLICATION
PANZER WALL SLEEVES
Tunneling protect
Petrochemical Industry
Power plants
VIP shelters
Civilian shelters
Military shelters
Industrial shelters
WALL SLEEVE
PANZER WALL SLEEVES
Code No. Description of the Item
WS-150-Type 1
WS-150-Type 1 Plate for WS-150 for 1 cable with diameter of M75 x 1,5, without cable glands Wall Sleeve_Type1_without_cable_glands
WS-150-Type 1
WS-150-Type 1 Plate for WS-150 for 1 cable with diameter of 55-65 mm Wall Sleeve_Type1
WS-150-Type 2
WS-150-Type 2 PPlate for WS- 150 for 4 cables M40 x 1,5, without cable glands Wall Sleeve_Type2_without_cable_glands
WS-150-Type 2
WS-150-Type 2 Plate for WS-150 for 4 cables with diameter of 16-28 mm Wall Sleeve_Type2
WS-150-Type 3
WS-150-Type 3 Plate for WS-150 for 4 cables M32 x 1,5, without cable glands Wall Sleeve_Type3_without_cable_glands
WS-150-Type 3
WS-150-Type 3 Plate for WS-150 for 4 cables with diameter of 13-21 mm Wall Sleeve_Type3
WS-150-Type 4
WS-150-Type 4 Plate for WS-150 for 4 cables 2 x M25 x 1,5; 2 x M20 x 1,5, without cable glands Wall Sleeve_Type4_without_cable_glands
WS-150-Type 4
WS-150-Type 4 Plate for WS-150 for 4 cables 2 x with diameter of 6-13 mm; 2 x with diameter of 10-17 mm Wall Sleeve_Type4
WS-150-Type 5
WS-150-Type 5 Plate for WS-150 for 2 cables 1 x M50 x 1,5, 1x M40 x 1,5 without cable glands Wall Sleeve_Type5_without_cable_glands
WS-150-Type 5
WS-150-Type 5 Plate for WS-150 for 2 cables 1 x with diameter of 21-35 mm, 1 x with diameter of 16-28 mm Wall Sleeve_Type5
WS-150-Type 6
WS-150-Type 6 Plate for WS-150 for 9 cables M16 x 1,5 without cable glands Wall Sleeve_Type6_without_cable_glands
WS-150-Type 6
WS-150-Type 6 Plate for WS-150 for 9 cables with diameter of 6-13 mm Wall Sleeve_Type6
WS-150-Type 7
WS-150-Type 7 Plate for WS-150 for 3 cables 1 x M32 x 1,5; 2 x M40 x 1,5 without cable glands Wall Sleeve_Type7_without_cable_glands
WS-150-Type 7
WS-150-Type 7 Plate for WS-150 for 3 cables 1 x with diameter of 13-21 mm; 2 x with diameter of 16-28 mm Wall Sleeve_Type7
WS-150-Type 8
WS-150-Type 8 Plate for WS-150 for 3 cables M40 x 1,5 without cable glands Wall Sleeve_Type8_without_cable_glands
WS-150-Type 8
WS-150-Type 8 Plate for WS-150 for 3 cables with diameter of 16-28 mm Wall Sleeve_Type8
WS-150-Type 9
WS-150-Type 9 Plate for WS-150 for 2 cables 1 x M25 x 1,5; 1 x M50 x 1,5 without cable glands Wall Sleeve_Type9_without_cable_glands
WS-150-Type 9
WS-150-Type 9 Plate for WS-150 for 2 cables 1 x with diameter of 10-17 mm; 1 x with diameter of 34-48 mm Wall Sleeve_Type9
WS-150-Type 1
WS-150-Type 1 Blind plate for WS-150 Wall Sleeve_Type1_blind_plate
Code No. Description of the Item
WS-150-500
WS-150-500 For wall thickness of 500 mm Wall Sleeve_500
WS-150-750
WS-150-750 For wall thickness of 750 mm Wall Sleeve_750
WS-150-1000
WS-150-1000 For wall thickness of 1000 mm Wall Sleeve_1000
WS-150-1100
WS-150-1100 For wall thickness of 1100 mm Wall Sleeve_1100
WS-150-1800
WS-150-1800 For wall thickness of 1800 mm Wall Sleeve_1800
