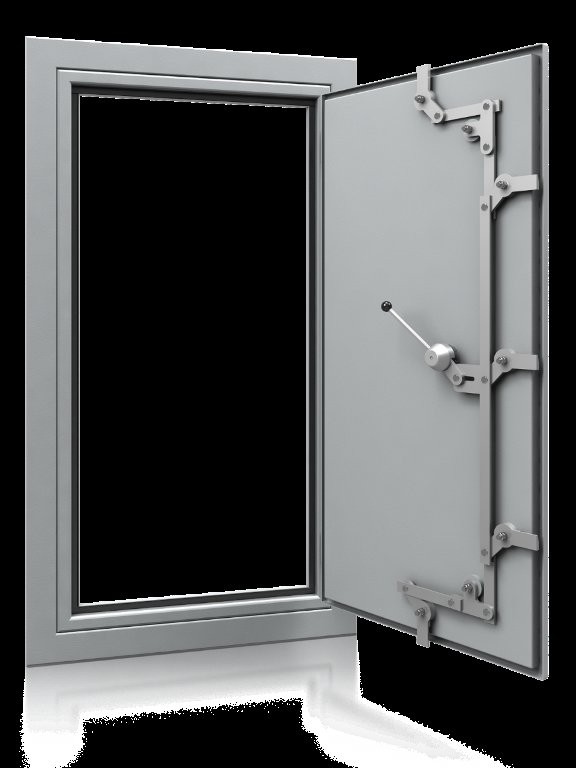

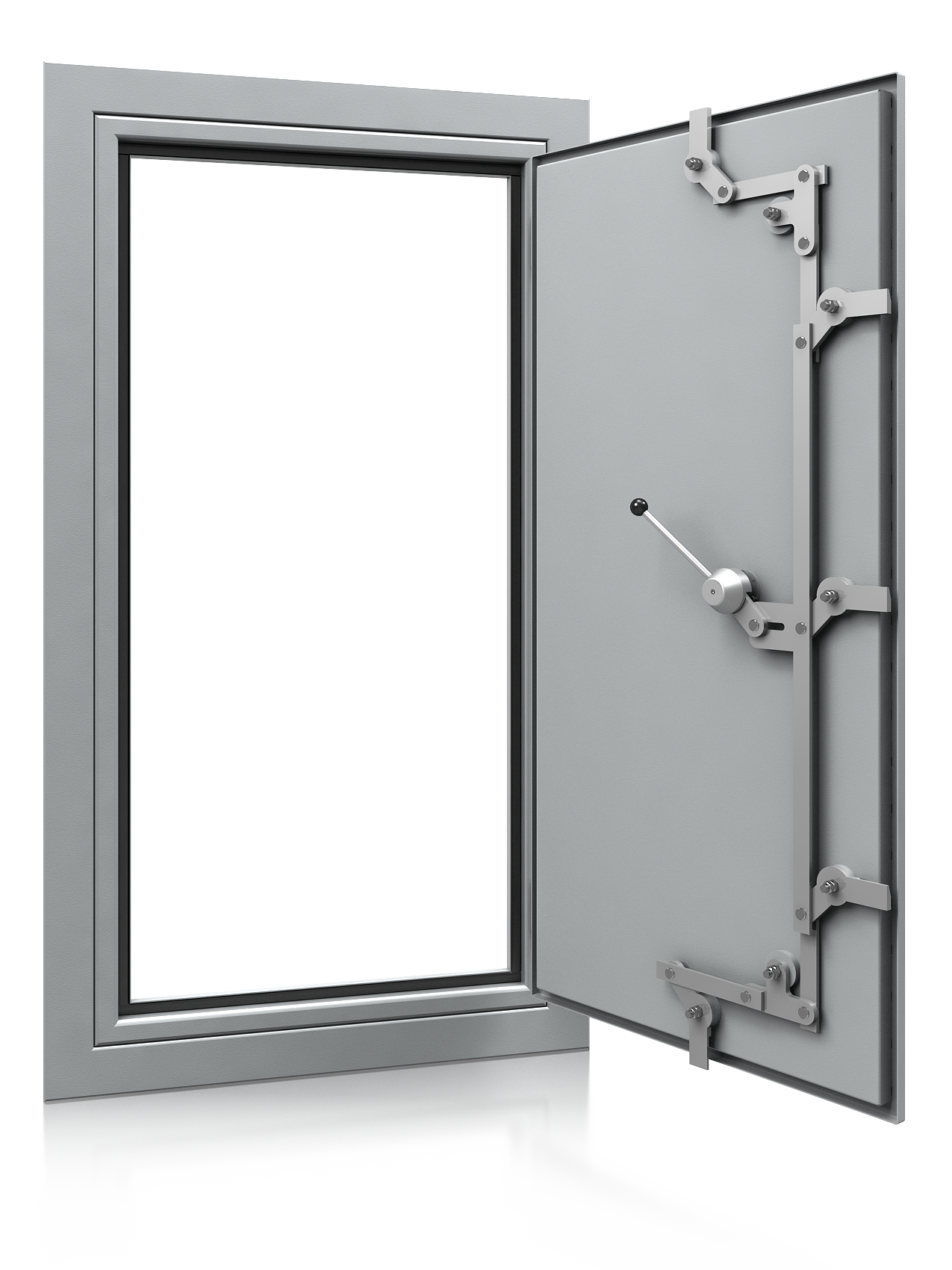

Door description:
The requirements for the GT doors are similar to the
“Technical Regulations for shelter closures”;
typical applications for gas tight and air tight steel hinged door sets are bio-hazard laboratories, pharmaceutical and industrial clean rooms, gas tight enclosures, water treatment facilities, sewage treatment works, government laboratories, fumigation suites, research facilities, hospitals, military buildings and universities;
the gas tight door is produced in double skinned steel or stainless steel of 3 mm thickness outside and 2 mm inside, filled with a non-flammable and heat insulation mineral fibre panel;
side hinged swinging type.
the door can be operated from both sides in manual operation.
Standard specification:
Pressure Difference (Pa) Leakage Rate ltr/m/hr
10 1,5
50 5
100 15
200 35
Description of latching:
The door can be provided with different types of locking mechanism:
- only handle from both sides
- with padlock from outside,
- with cylinder key lock from outside OR inside,
- with cylinder key lock from both sides
each leaf is hinged with 4 strong hinges, which allow door opening 180°,
Door frame:
Frame is constructed from sturdy 3 mm specially profiled steel panels (alternative: stainless steel panels) and carefully bent and welded with hollow profiles.
Window optional:
Doors can be equipped with a window of security glass.
Gasket seal:
This door is equipped with a EPDM-solid rubber; EPDM-sponge rubber in frame and door
Hardness:
solid rubber 65 +/-5 Shore A;
sponge rubber density 0,8 +/-0,1 g/cm³
Colour:
black
Operation temperature:
-40° - +100°
UV stability:
good
Stable against:
alcohol, ozon, climate resistance; lyes and low acids, acetone
Factory tolerance acc.to:
Solid rubber: DIN ISO 3302-1 E2
Sponge rubber: DIN ISO 3302-1 E3
Lengths: DIN ISO 3302-1 L3
Door finish:
a. doors are painted with primer resisting corrosion and final hard wearing paint.
b. stainless steel doors are delivered blank
Static material strength:
A. design: structural steel plate
steel plate according:
EN 10025-2/2004 hot rolled products of structural steel
EN 10029 A/N hot rolled steel plates 3 mm steel or above tolerances
EN 10163-2 A/1 delivery requirements for surface conditions
AD2000 W1 guidelines for steel products
quality: S235JR+M used steel quality
minimum static yield strength 300 N/mm² (Mpa)
maximum static yield strength 412 N/mm² (Mpa)
minimum tensile strength 410 N/mm² (Mpa)
minimum tensile strength 566 N/mm² (Mpa)
elongation at rupture: 27 % - 37 %
B. design: stainless steel
stainless steel plate according:
EN 10204/3.1 Mill Certificate
EN ISO3651/2 A:OK corrosion test
AD2000 W2 – AD2000 W10 PED97/23/EC
quality: X2CrNi; 18-9, WNR 1.4307 A304L
X5CrNi; 18-10; 1.4301, A304
minimum static yield strength 330 N/mm² (Mpa)
maximum static yield strength 375 N/mm² (Mpa)
minimum tensile strength 600 N/mm² (Mpa)
minimum tensile strength 650 N/mm² (Mpa)
elongation at rupture: 50 % - 56 %
